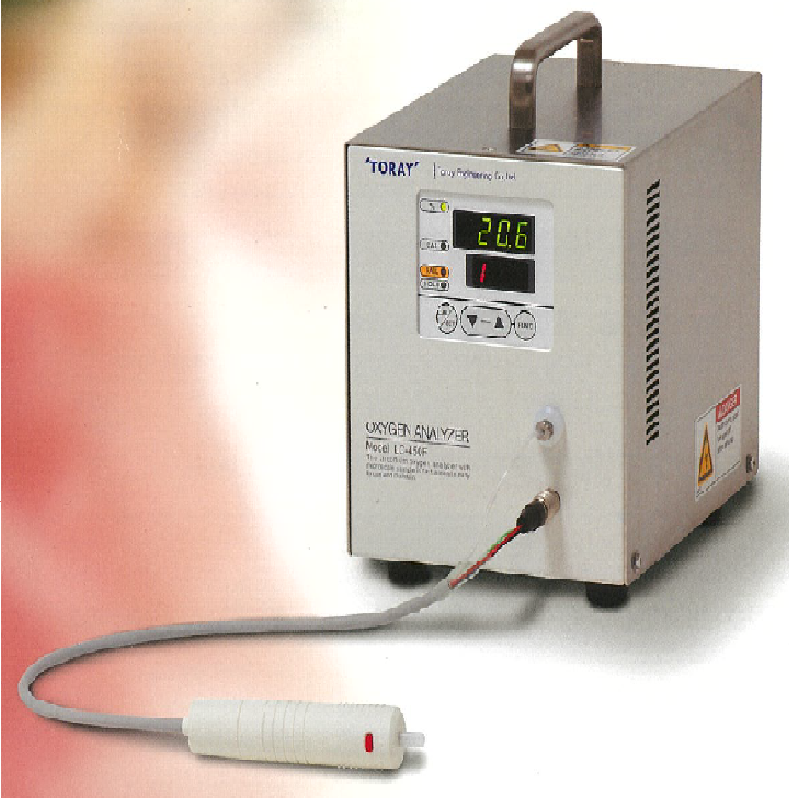

LC-450F Item No:LC-450F

LC-450FItem No:LC-450F

  • Minute sample measurement: 3 ml sample size - Uses compact sensor newly developed by Toray
  • Automatic sample suction - Easy to operate
  • Different sampling methods available for different sample types
  • Easy to determine when measurement has ended - A buzzer sounds to notify the operator that measurement has ended
  • Hygienic exterior - Hygienic design featuring a stainless steel cover and white panels
  • RoHS compliant, low power consumption - Environmentally conscious design

LC-450F specifications

Measurement principle Battery-powered zirconia oxygen analyzer
Type Desktop type
Display system 4-digit digital display (concentration display)
Measurement range 0-1 / 10 / 100vol% O2
Automatic range
Repeatability Within ±1% of full scale
Sampling system Continuous suction with internal pump
Sample gas requirements Sample size: 3mL or more/sample
Humidity: Dew point below ambient temperature
Temperature: 0-50ºC
Others: Not to contain corrosive gas (fluorine gas, chlorine gas, sulfuric gas, etc.), gas containing organic silicone, flammable ingredients (including gas), oil or moisture
Reference gas Atmospheric air
Recorder output None
Transmission output RS-232C
Alarm output None
Warmup time Under 5 min
Dimensions Body: 150(W)×161(H)×210(D)mm (excludes protruding parts)
Weight Approx. 4kg
Power 100-240VAC 50VA
